Specifications
|
|

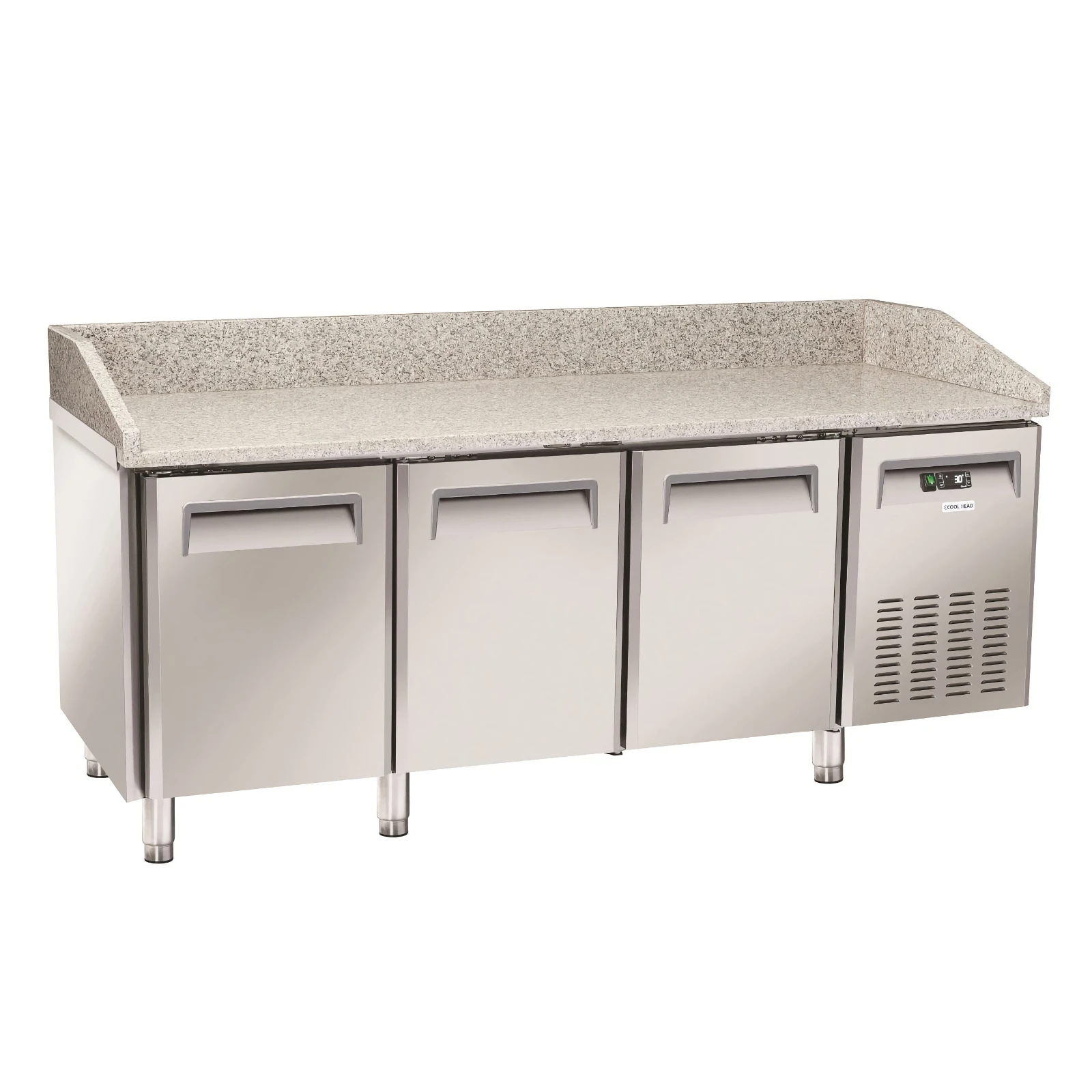

Pizza counter „Coolhead“ QZ 30
„Coolhead“ QZ 30 Product description
„Coolhead“ QZ 30 - PIZZA Refrigerated Counter for 600x400 mm trays: QZ 20 combines the functionality of a refrigerated workbench with the convenience of a granite surface, making it perfect for efficient pizza production.
The QZ 20 model is expertly designed to serve as a dependable refrigeration workstation for pizza preparation. It combines storage and workspace efficiency, featuring an 800 mm depth and a durable granite top with a 200 mm high splash back.
The unit includes a refrigerated compartment with three doors, each equipped with one adjustable 600×400 mm shelf and one set of "C" shape guides.
This item accommodates a refrigerated topping unit, which can be fitted with either a flat glass top or a stainless steel lid top, ensuring the freshness of ingredients is preserved.
Technical Specifications
| Commercial Capacity | 640 L |
|---|
| Energy Consumption | 2.53 kW per 24 hours |
|---|
| External Dimensions (WxDxH) | 2025 x 800 x 1040 mm |
|---|
| Internal Dimensions (WxDxH) | 1605 x 685 x 585 mm |
|---|
| Weight | 350 kg (Gross), 296 kg (Net) |
|---|
| Noise Level | 48 dB(A) |
|---|
| Power | 450 W |
|---|
| Temperature Range | +2° to +8°C |
|---|
| Manufacturer's website | www.coolheadeurope.com |
|---|
General Features
- Material: Stainless steel exterior and interior

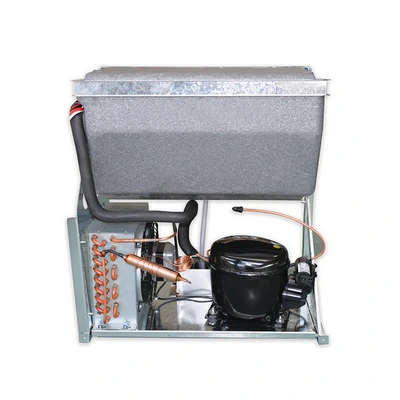

- Cooling: Ventilated with a cassette system engine
- Defrost: Automatic compressor cycle
- Insulation: Foaming Agent Cyclopentane (60 mm per side)

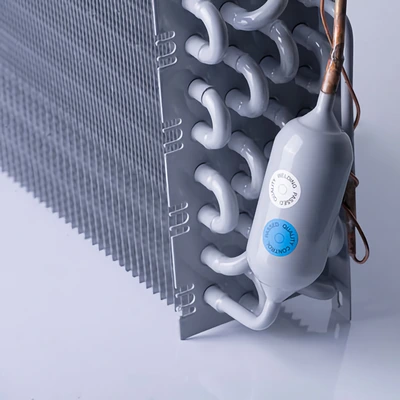

- Evaporator: Features anti-corrosion treatment
- Control: Digital thermostat
- Door: Self-closing (non-reversible)
- Removable Gasket
- Shelves: Three adjustable 600×400 mm pieces
- Feet: Six stainless steel adjustable feet (lockable castor optional)
- Item compatible with refrigerated topping unit „Coolhead“ VRX 20/38
- Energy Efficiency Class: C
Accessories
- Shelf: 400x600 mm
- Guides: "C" shape, "L" shape
- Castors: 140 mm height
- Refrigerated topping unit „Coolhead“ VRX 20/33
| Capacity |
| Commercial Capacity: |
640 L |
| Doors |
| Quantity of doors: |
3 pcs. |
| Temperature |
| Temperature Range: |
+2° to +8°C |
| Electric connection |
| Power in watts (W): |
0.45 kW |
| Voltage in volts (V): |
230 V 1F |
| Consumption |
| Electricity consumption: |
2.53 kW per 24 hours |
| Energy Efficiency Class: |
C |
| Cooling |
| Ventilated cooling |
Ventilated with a cassette system engine |
| Noise level |
| Background noise: |
48 dB(A) |
| Dimensions |
| Internal Dimensions (width/depth/height): |
1605x685x585 mm |
| External Dimensions (width/depth/height): |
2025x800x1040 mm |
| Weight |
| Gross Weight: |
350 kg |
| Net Weight: |
296 kg |
