Specifications
|
 |
Pizza counter „Coolhead“ QZ 20
„Coolhead“ QZ 20 Product description

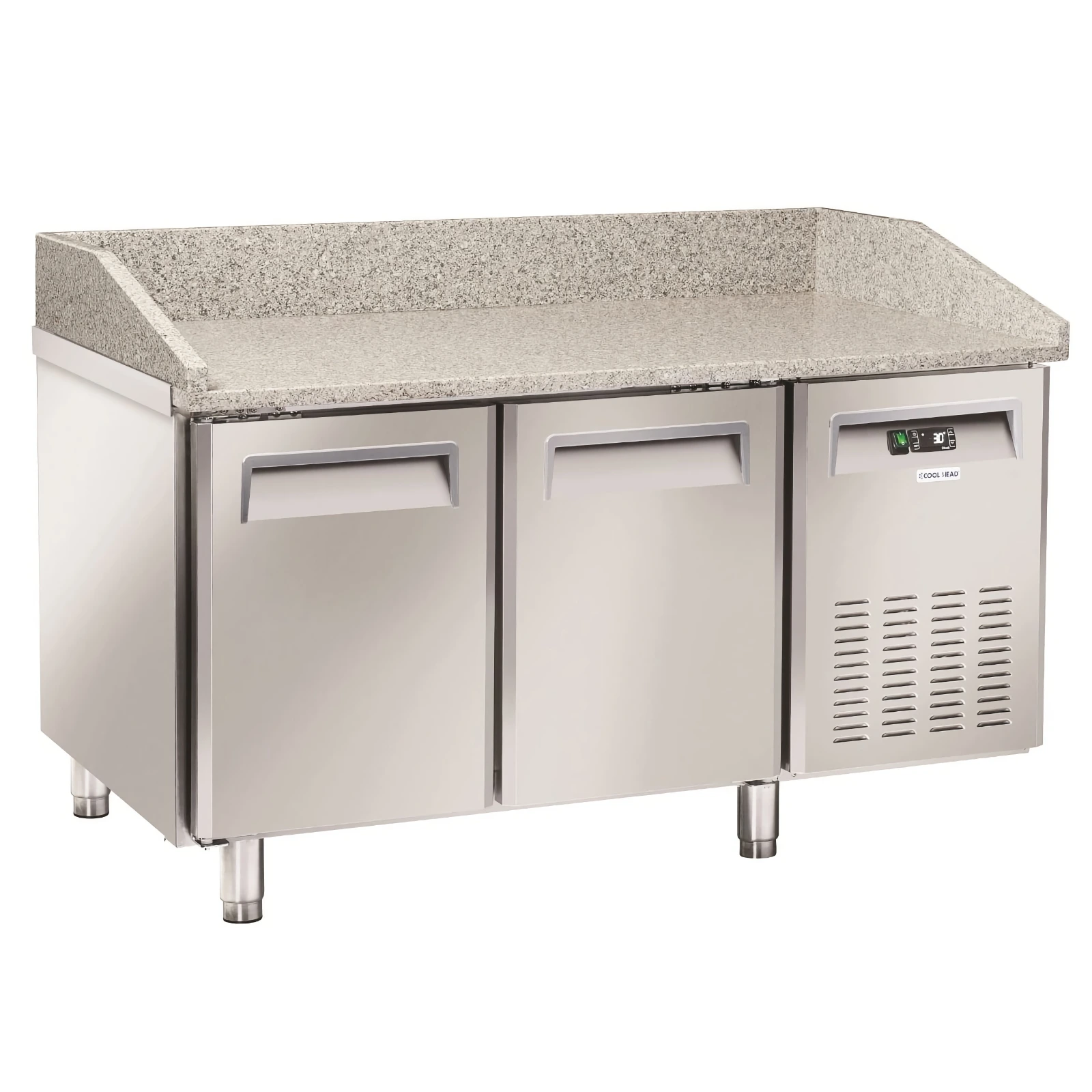

„Coolhead“ QZ 20 - PIZZA Refrigerated Counter for 600x400 mm trays: QZ 20 combines the functionality of a refrigerated workbench with the convenience of a granite surface, making it perfect for efficient pizza production.

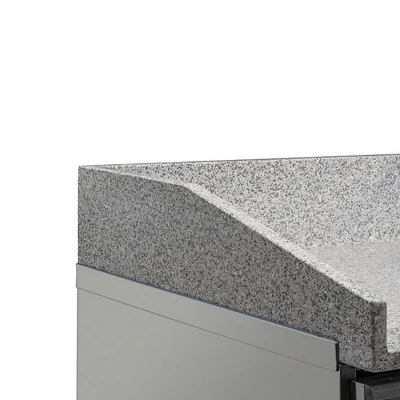

The QZ 20 model is expertly designed to serve as a dependable refrigeration workstation for pizza preparation. It combines storage and workspace efficiency, featuring an 800 mm depth and a durable granite top with a 200 mm high splash back.
The unit includes a refrigerated compartment with two doors, each equipped with one adjustable 600×400 mm shelf and one set of "C" shape guides.

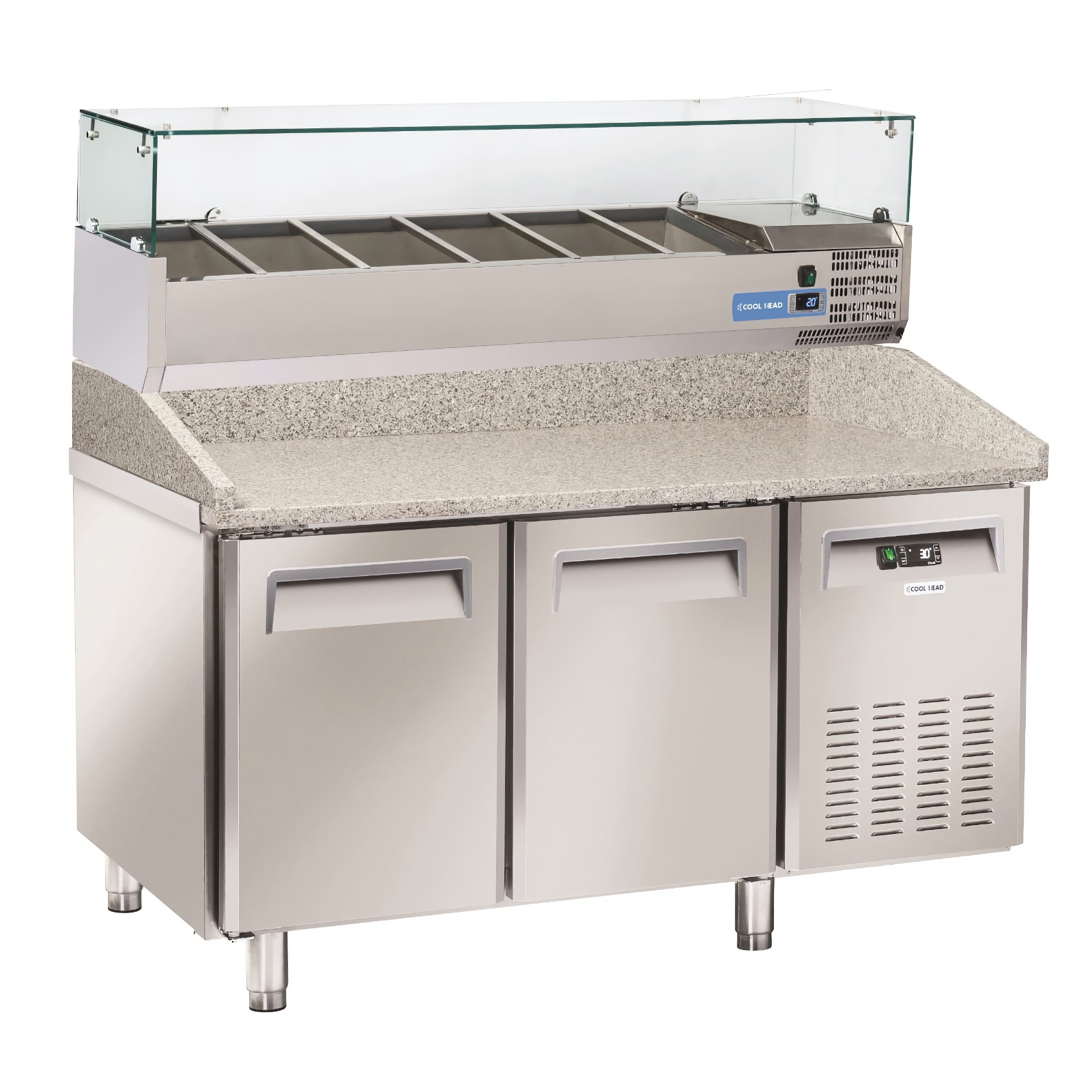

This item accommodates a refrigerated topping unit, which can be fitted with either a flat glass top or a stainless steel lid top, ensuring the freshness of ingredients is preserved.
Technical Specifications
| Commercial Capacity | 430 L |
|---|
| Energy Consumption | 2.08 kW per 24 hours |
|---|
| External Dimensions (WxDxH) | 1500 x 800 x 1040 mm |
|---|
| Internal Dimensions (WxDxH) | 1080 x 685 x 585 mm |
|---|
| Weight | 203 kg (Net), 244 kg (Gross) |
|---|
| Noise Level | 42 dB(A) |
|---|
| Power | 300 W |
|---|
| Temperature Range | +2° to +8°C |
|---|
General Features
- Material: Stainless steel exterior and interior
- Cooling: Ventilated with a cassette system engine
- Defrost: Automatic compressor cycle
- Insulation: Foaming Agent Cyclopentane (60 mm per side)

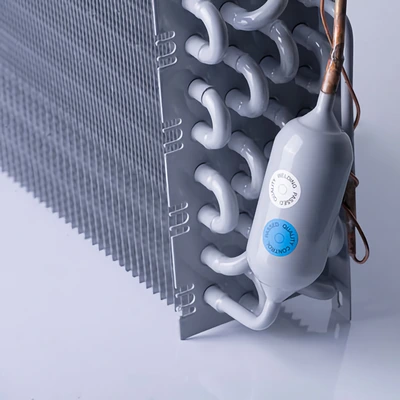

- Evaporator: Features anti-corrosion treatment
- Control: Digital thermostat
- Door: Self-closing (non-reversible)
- Removable Gasket
- Shelves: Two adjustable 600×400 mm pieces
- Feet: Four stainless steel adjustable feet (lockable castor optional)
- Item compatible with refrigerated topping units „Coolhead“ VRX 15/33, 15/38
- Energy Efficiency Class: C
Accessories
- Shelf: 400x600 mm
- Guides: "C" shape, "L" shape
- Castors: 140 mm height
- Refrigerated topping unit „Coolhead“ VRX 15/38 (5*GN1/3 + 1*GN1/2)
- Refrigerated topping unit „Coolhead“ VRX 15/33 (7*GN1/4)
| Capacity |
| Commercial Capacity: |
430 L |
| Doors |
| Quantity of doors: |
2 pcs. |
| Temperature |
| Temperature Range: |
+2° to +8°C |
| Electric connection |
| Power in watts (W): |
0.3 kW |
| Voltage in volts (V): |
230 V 1F |
| Consumption |
| Electricity consumption: |
2.08 kW per 24 hours |
| Energy Efficiency Class: |
C |
| Cooling |
| Ventilated cooling |
Ventilated with a cassette system engine |
| Noise level |
| Background noise: |
42 dB(A) |
| Dimensions |
| Internal Dimensions (width/depth/height): |
1080x685x585 mm |
| External Dimensions (width/depth/height): |
1500x800x1040 mm |
| Weight |
| Gross Weight: |
244 kg |
| Net Weight: |
203 kg |
